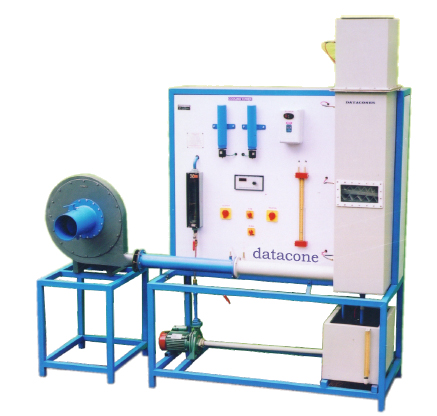

FORCED DRAUGHT COOLING TOWER


FORCED DRAUGHT COOLING TOWER

RANGE OF EXPERIMENTS
To determine Volumetric mass transfer coefficient ( hD.a ) for air, water
system in a cooling tower.
To study the temperature distribution along the height of the tower.
The experiments can be conducted at various flow rates of Air & Water & calculation can be made accordingly.
Experiment can be conduct on both Induced & Forced Draught condition.
To determine & compare the efficiency of the tower from Induced & Forced Draught condition.

EXPERIMENTAL SETUP :

Heater Assembly.
Cooling Tower size : 300 mm x 300 mm x 1200 mm.
Packing : Expanded wire mesh (Two sets).
Rotameter : 1.1 - 11 LPM to measure inlet water flow.
Induced draught axial flow fan.
Blower : Centrifugal type 3 HP.
Orificemeter : To measure air flow.
Water circulating pump.
Set of thermocouples.

CONTROL PANEL :
12 Channel Digital Temperature Indicator
Switches for Pump, axial fan, heater,Etc.
Main On/Off Switch for blower.

SPACE REQUIRED :
3.5m. (L) x 1.0 m (W).
WEIGHT :
125 Kg @
SERVICE REQUIRED :
POWER SUPPLY : 230 V. A.C., 50 Hz.
