VAPOUR ADSORPTION REFRIGERATION CYCLE TEST RIG


VAPOUR ADSORPTION REFRIGERATION CYCLE TEST RIG

RANGE OF EXPERIMENTS
To study all components used in adsorption refrigeration system.
To study the working of thermal compressor.
To determine the Refrigeration Effect, Heat Input, Actual C.O.P., Ton of Refrigeration

EXPERIMENTAL SETUP :

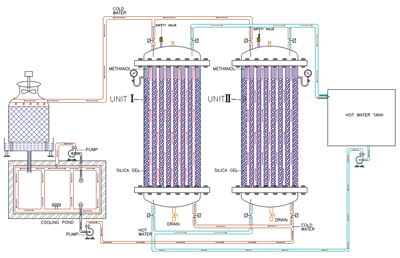

Thermal Compressor : Thermal compressor is divided in to two phases for two phase operation working in continuous mode. Principal of the thermal compressor is adsorption cooling system based on Heat & Mass Transfer operations. Thermal compressor is designed for 0.5 T.
capacity. Evaporator and Condenser are separately incorporate in main chamber of Thermal Compressor.
Refrigerant : Water cooled condenser made of 0.1 m Dia x .2m length with condenser valves and fittings as per our standard design
Receiver : Refrigerant receiver of 2' x 4" with valves and fittings
Monoblock : 1 HP, three phase, 50 Hz monoblock for condenser water circulation pump.
Evaporator : Three row evaporator fitted inside insulated chamber of 0.5 m x 0.5 m x 0.5 m
Refrigerant Piping : Refrigerant pipe to interconnect high and low equipment
Water Piping : Water pipe lines and fittings to interconnectwater line of condensing water.
Steam Generator : Steam Generator of 40 lit capacity & pressure 1.2 kg/cm2.
Cooling Tower : 300 Kcal/hr.
Set of thermocouples.

CONTROL PANEL :
12 Channel Digital Temperature Indicator
Suitable Switches & controls.

SPACE REQUIRED :
5 m.( L) x 2.2 m. (W)
WEIGHT :
@ 550 Kg
SERVICE REQUIRED :
POWER SUPPLY : 440 V. A.C., 50 Hz.

Water Supply : @ 160 LPM with 20 mtr. head.

R.C.C. Constructed Cooling Pond.
