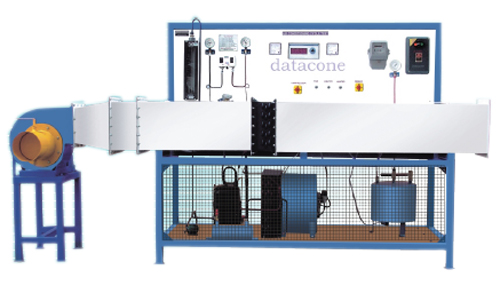

AIR CONDITIONING CYCLE TEST RIG


AIR CONDITIONING CYCLE TEST RIG

RANGE OF EXPERIMENTS
To study all components used in Air Conditioning system.
To study the Vapor compression Refrigeration cycle.
To study the cooling, humidification,& dehumidification process.
To determine the Refrigeration Effect, Work Input, Actual C.O.P., Carnot C.O.P., Theoretical C.O.P., Relative C.O.P., Ton of Refrigeration, and Plant Efficiency.

EXPERIMENTAL SETUP :

Compressor : Hermetically sealed compressor.
Condenser : Air Cooled condenser made out of copper pipe & Aluminum fins of matching capacity with fan cooling
Evaporator : Air calorimeter type evaporator. The air passed by a fan through duct. The expanded refrigerant passes through evaporator coils, fixed in the duct. The passing air comes in contact with the coils & gets cooled.
Expansion device : Thermostatic expansion valve.
Energy Meter : For power measurement of compressor.
Pressure Gauge : 2 Nos. for H.P., L.P. measurement
Hand Shut Off type Service valve.
Electric Heater : Finned type heater for air heating.
Rotameter for Refrigerant flow measurement.
Duct : Air duct of size 250 x 250 make out of CRC sheet in which evaporator is fitted.
Baby Boiler : Electrically fired small baby boiler for maintaining humidity of air with electrical heater
Blower : 1 HP capacity centrifugal blower with air control arrangement.

CONTROL PANEL :
12 Channel Digital Temperature Indicator
HP-LP Cutout : Make Ranco /Danfoss or Equivalent.
Switches : For compressor, condenser fan, Dehumidifier Heater, blower & boiler heater.
Voltmeter : 0 - 250 V.
Ammeter :0 - 15 A.
SPACE REQUIRED :
3.0 m. (L)x 1.0 m.(W).
WEIGHT :
@ 160 Kg
SERVICE REQUIRED :
POWER SUPPLY : 440 V. A.C., 50 Hz.

Anemometer : Cup Type.
