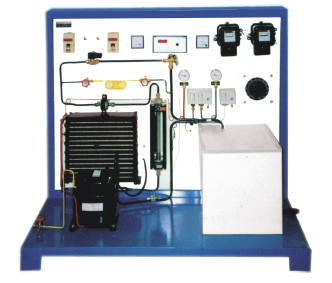

REFRIGERATION CYCLE TEST RIG


REFRIGERATION CYCLE TEST RIG

RANGE OF EXPERIMENTS
To study all components used in refrigeration system.
To study the Vapor compression Refrigeration cycle.
To determine the Refrigeration Effect, Work Input, Actual C.O.P., Carnot C.O.P., Theoretical C.O.P., Relative C.O.P., Ton of Refrigeration, and Plant Efficiency.

EXPERIMENTAL SETUP :

Compressor : Hermetically sealed compressor.
Condenser : Air Cooled condenser made out of copper pipe & Aluminum fins of matching capacity with fan cooling.
Evaporator : Copper Coil immersed in water. The evaporator is insulated from outside to prevent heat loss.
Expansion device : Capillary Tube & Thermostatic expansion valve.
Energy Meter : One each for power measurement of compressor & evaporator heater.
Pressure Gauge : 2 Nos. for H.P., L.P. measurement
Suitable filter/drier. 8. Hand Shut Off type Service valve.
Dimmerstat to control power supply to heater.
Rotameter for Refrigerant flow measurement.
Immersion type electric heater. 12.Solenoid valve Castle Italy make.
Set of thermocouples.

CONTROL PANEL :
12 Channel Digital Temperature Indicator
HP-LP Cutout : Make Ranco /Danfoss or Equivalent.
Switches : For compressor, condenser fan, solenoid valve & evaporator heater.
Voltmeter : 0 - 250 V.
Ammeter : 0 - 15 A.
Thermostat : Ranco or equivalent
SPACE REQUIRED :
1.5 m. (L) x 1.0 m. (W).
WEIGHT :
@ 150 Kg
SERVICE REQUIRED :
POWER SUPPLY : 440 V. A.C., 50 Hz.
