EXPERIMENTAL BOTTLE COOLER


EXPERIMENTAL BOTTLE COOLER

RANGE OF EXPERIMENTS
To study all components used in refrigeration system.
To study the Vapor compression Refrigeration cycle.
To determine the Refrigeration Effect, Work Input, Actual C.O.P., Carnot C.O.P., Theoretical C.O.P., Relative C.O.P., Ton of Refrigeration, and Plant Efficiency.

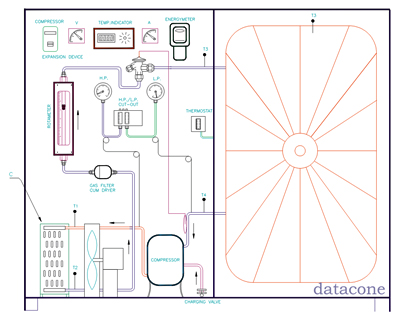

EXPERIMENTAL SETUP :

Compressor : Hermetically sealed compressor.
Condenser : Air Cooled condenser made out of copper pipe & Aluminum fins of matching capacity with fan cooling.
Evaporator : Copper Coil Limpeted bottle storage jacket. The evaporator is insulated from outside to prevent heat loss.
Expansion device : Capillary Tube/Thermostatic expansion valve.
Energy Meter : for power measurement of compressor.
Pressure Gauge : 2 Nos. for H.P., L.P. measurement
Suitable filter/drier.
Hand Shut Off type Service valve.
Rotameter for Refrigerant flow measurement.
Set of thermocouples.

CONTROL PANEL :
12 Channel Digital Temperature Indicator
HP-LP Cutout : Make Ranco /Danfoss or Equivalent.
Switches : For compressor & condenser fan.
Voltmeter : 0 - 250 V.
Ammeter : 0 - 15 A.
Thermostat : Ranco or equivalent

SPACE REQUIRED :
1.5 mtr. Length x 1.0 mtr width.
WEIGHT :
@ 150 Kg
SERVICE REQUIRED :
POWER SUPPLY : 440 V. A.C., 50 Hz.
